Lesson 22: Build a Power BI Dashboard

Training Guide

Building a Power BI Dashboard

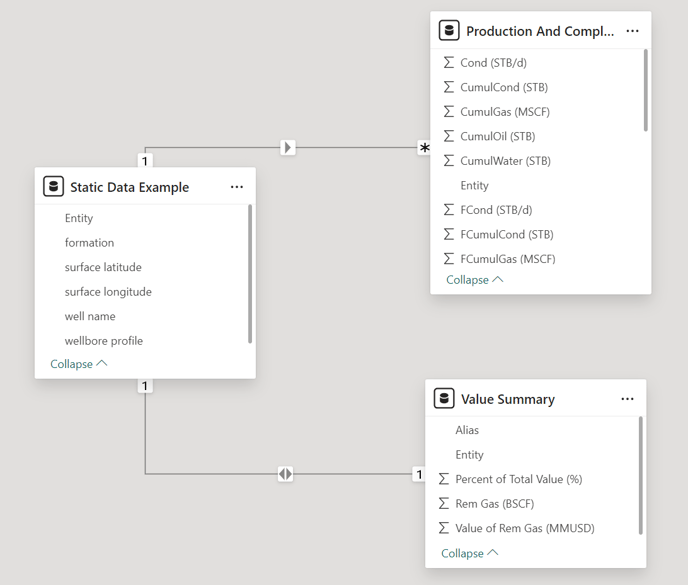

• Click on Model view on the left side panel


Confirm that the Entity Name is the connection between the data sets by clicking the connector line.  It should be a 1:1 Correspondance.

• Click on Report view on the left side panel.

• To add a new line chart, click in the open area.

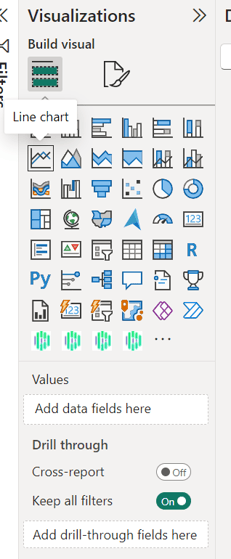

• Click the Line chart in the Visualizations panel.


• Resize to fit about 1/2 the screen.

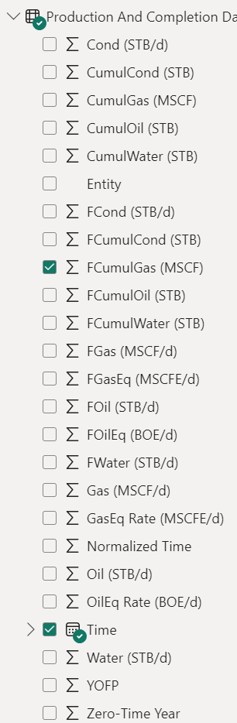

• Select FCumulGas (Y-axis) and Time (X-axis) in the Data panel.

• Populate the remaining areas by sliding the correct visualization to the correct area.  The dashboard should look like the following.
• Click on the blank space of your desktop. This needs to be done before creating a new visualization.

Populate the Slicer under the Production Forecast

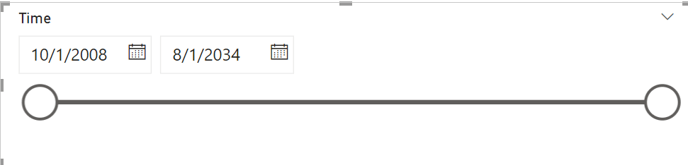

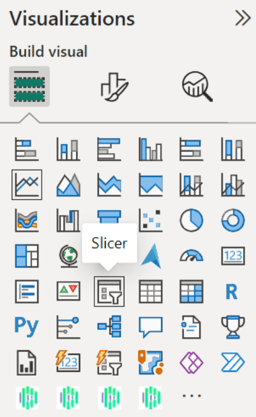

• Click Slicer in the Visualizations panel.

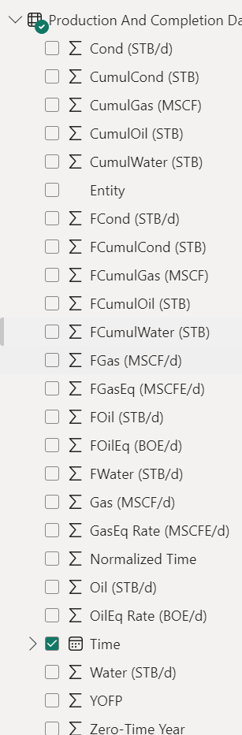

• Select Time in the Data panel

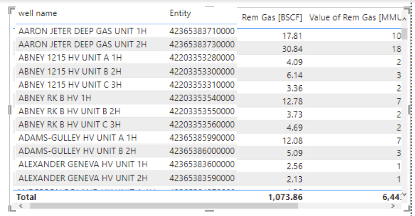

Populate the Table

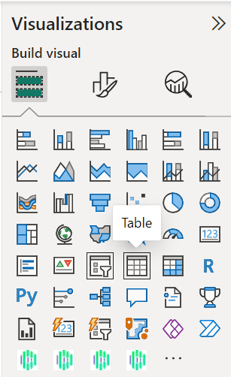

• Click on Table in the Visualizations panel.

• Select from the Data panel in order:

1. Well Name
2. Entity

3. Remaining Gas
4. Value of Remaining Gas
5. Percent of Total Value


Populate the Slicer under the Table

• Create another slicer, but now select Percent of Total Value in the Data panel.



Populate the Slicer next to the Map

• Create another slicer, but now select well name in the Data panel.



Populate the Map

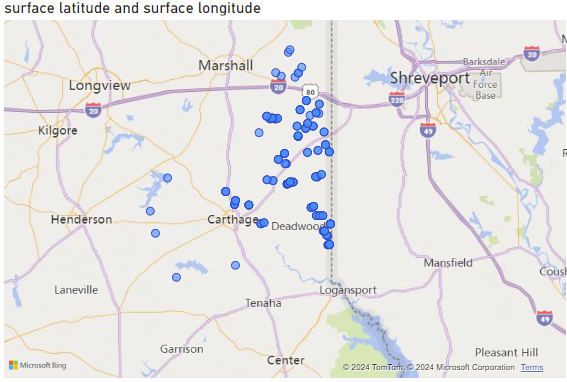

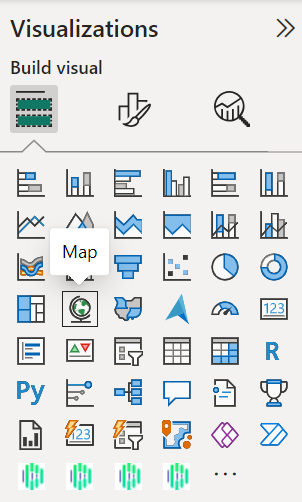

• Click Maps on the Visualizations panel.

• Select surface latitude and surface longitude in the Data panel.



Add Cards to the line graph.

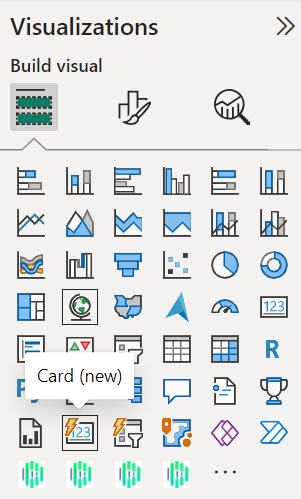

• Select Card in the Visualizations panel.

• Add two (2) cards to the white space.
• For the first:
  • Select Entity

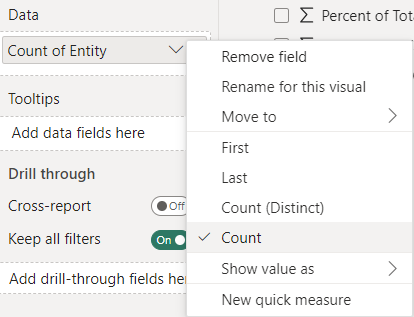

  • On the dropdown select Count

  • Rename to Well Count



• For the second:
  • Select the Percent of Total Value

  • Rename to % of Value


Enable the map to be able to create an entity set

• Move the map to the side.
• Under the map place a table.

• Use the API in the table.


The format of the table needs to be changed in order to enable entity creation.

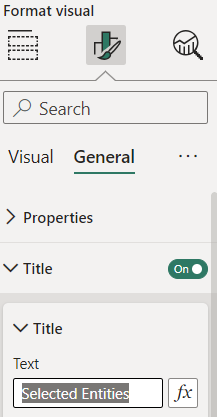

• Select Format Visual

• Select General
• Type in the name of the title as "SelectedEntities."

• Place behind the map, hidden.
• Move the icons around until satisfied with the spacing.
